Sugatsune, a global leader in industrial component hardware, introduces a series of advanced components designed to enhance safety, functionality, and operational efficiency across diverse industrial environments. Central to these innovations is Motion Design Technology (MDT)Sugatsune’s proprietary movement engineering platform that enables customized mechanical motion for improved control, ease of use, and safety. From free stop hinges and assistive lift mechanisms to soft close dampers and multi linear motion, MDT empowers engineers to tailor movement exactly to application needs resulting in smoother workflows and more reliable equipment performance, particularly for precise and safe lid control.

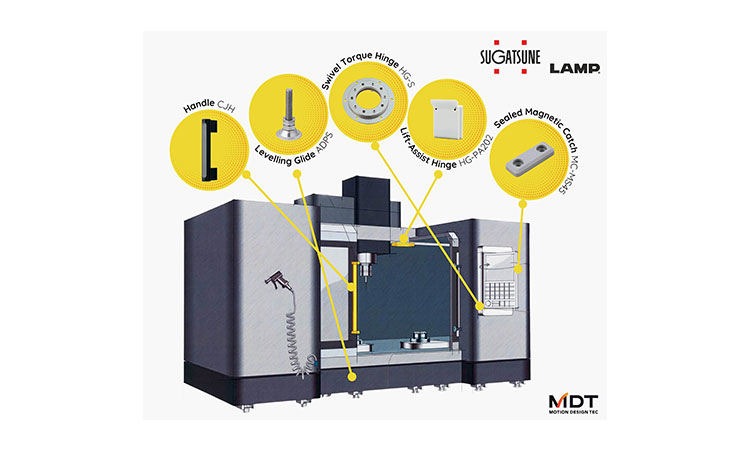

Among the key highlights is the CJH handle, purpose-built for control boxes and industrial panels. This handle exemplifies both toughness and beautility, combining industrial-grade strength with a clean, modern design. It features a long, color-coded cap available in grey, yellow, black, orange, red, and blue for intuitive operation and clear demarcation of danger zones or designated work areas. The CJH handle supports both front and back mounting with screws, offering flexible installation and ensuring reliable performance in demanding environments.
To ensure equipment stability on uneven surfaces, Sugatsune offers the ADPS and ADP stainless steel leveling glides. These glides feature a hexagonal nut at the base for quick and easy adjustment and are available in robust 304 and 316 stainless steel offering excellent corrosion resistance and long-term durability. Their high load capacity and industrial-grade design make them ideal for heavy-duty applications in challenging environments.
For machinery and industrial enclosures requiring secure and precise lid positioning, the HG S Swivel Torque Hinge delivers outstanding performance. Utilizing MDT, it enables smooth, controlled motion with free stop positioning at any angle. Its central hole allows for seamless cable management, and the hinge has successfully passed a 20,000-cycle open/close test. This hinge is especially suited for large control panels, HMI units, and heavy machinery ensuring safe, reliable access during routine operations.
The HG PA202 Lift Assist Hinge outside back mount is engineered to simplify the lifting of heavy, top-opening lids. It incorporates spring tension for lift assist, a built-in damper for soft-close functionality, and an adjustable torque mechanism for customizable performance. With concealed mounting and hygienic design, it’s ideal for food machinery applications where cleanliness and user safety are critical. It performs best when the lid’s center of gravity is above the rotation axis, achieving peak torque at around 20 degrees.
When it comes to lid control in machinery and enclosures, Sugatsune leads with an extensive range of torque hinge solutions, all engineered around its Motion Design Tech (MDT) philosophy, which emphasizes smooth, precise, and dependable motion. Swivel torque hinges with cable-routing features enable clean rotational movement while allowing safe and efficient routing of wires or tubes through the hinge axis—ideal for applications with integrated electronics or fluid lines. Spring-assist and damper-based torque hinges reduce the effort required to lift heavy lids and ensure controlled, quiet closure, offering improved ergonomics, user safety, and reduced impact on components. Pivot and detachable torque hinges provide robust rotational support with the added convenience of easy panel removal, making them well-suited for modular systems and equipment that requires frequent access or servicing. Two-axis spring-assist hinges enable movement in multiple directions, allowing lids or access panels to open in various orientations—perfect for compact or multifunctional designs. Concealed torque hinges are designed to remain hidden when closed, delivering a clean, seamless look ideal for premium equipment or design-sensitive environments, while stainless steel torque hinges offer maximum durability and corrosion resistance, ensuring long-term performance in harsh or outdoor settings. Together, this comprehensive range empowers engineers with unmatched flexibility, long-lasting reliability, and maintenance-friendly solutions for advanced lid and panel motion systems.
Also featured is the MC MS45 Sealed Magnetic Catch, designed for secure, quiet closures. Its powerful neodymium magnet ensures a firm hold, while the silicone rubber housing reduces impact noise and wear. Available in light and dark grey, this component integrates well into both industrial and commercial equipment. It is compatible with flat counter plates such as MCJMP45, AS 68, or MC JM49, and works optimally with M4 Truss head screws. Note it is not intended for use in strong acid, alkaline, or high-moisture environments and is rated for temperatures up to 80 degrees Celsius.
