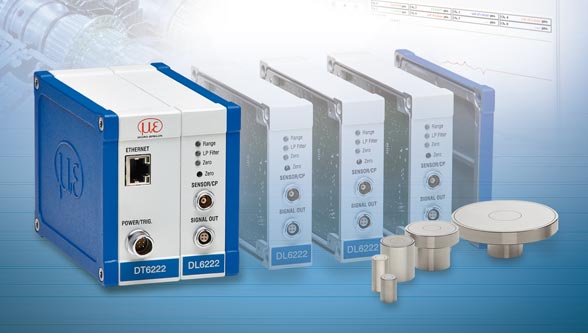

The capaNCDT 6200 is the first multi-channel measurement system that is entirely modular. The controller can easily be extended up to four synchronized channels to support flexible applications. All capacitive displacement sensors by Micro-Epsilon can be operated using the capaNCDT 6200 controller. The integrated Ethernet interface supports parameterization and measurements via web interface. The DL6230 demodulator is available for high resolution measurements. For high-speed measurements up to 20kHz, the capaNCDT 6222 system is available.
Capacitive sensors are designed for non-contact measurement of displacement, distance and position, as well as for thickness measurement. Due to their high signal stability and resolution, capacitive displacement sensors are applied in laboratories and industrial measurement tasks. In production control, for example, capacitive sensors measure film thickness and application of the adhesive. Installed in machines, they monitor displacement and tool positions.
