Seco tools steadyline tooling additions for turning capabilities

Seco Tools expands its long-reach turning and boring capabilities with additions to its well-known series of Steadyline® vibration-damping turning/boring bars and their respective heads

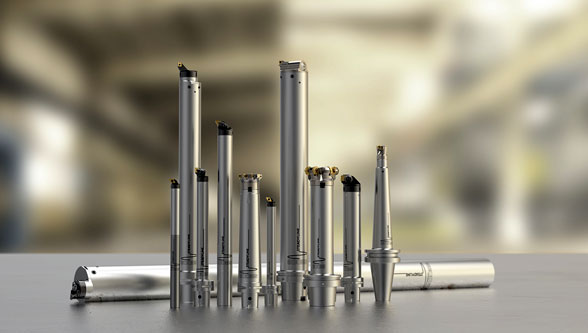

Seco Tools expands its long-reach turning and boring capabilities with additions to its well-known series of Steadyline® vibration-damping turning/boring bars and their respective heads. These new products include 25 mm (1.00″) diameter Steadyline® bars, GL25 turning heads, 100 mm (4.00″) diameter Steadyline® bars, and additions to the range of rough and fine boring heads for Steadyline® bars.

Steadyline® turning bars use the most-effective vibration damping system in the industry for easy turning and boring to depths up to 10xD on small and large holes

Steadyline® turning bars use the most-effective vibration damping system in the industry for easy turning and boring to depths up to 10xD on small and large holes. The system’s passive/dynamic vibration damping uses a damping mass inside the toolholder bar and short, compact cutting tool heads to maximize vibration absorption, making it possible to use tool lengths up to 10 times the bar diameter without tool chatter or work interruptions.

With Steadyline®, shops can exchange turning and boring tool heads quickly and effortlessly using the unique Seco GL connection. The GL connection mounts heads to Steadyline® bars quickly and firmly, with centering accuracy and repeatability of 5 microns and 180° head orientation capability if required.
